LSI MegaRAID SAS 9240-8i Specifications

หน้าแรก Tech Spec LSI MegaRAID SAS 9240-8i Specifications

คุณสมบัติทางเทคนิค

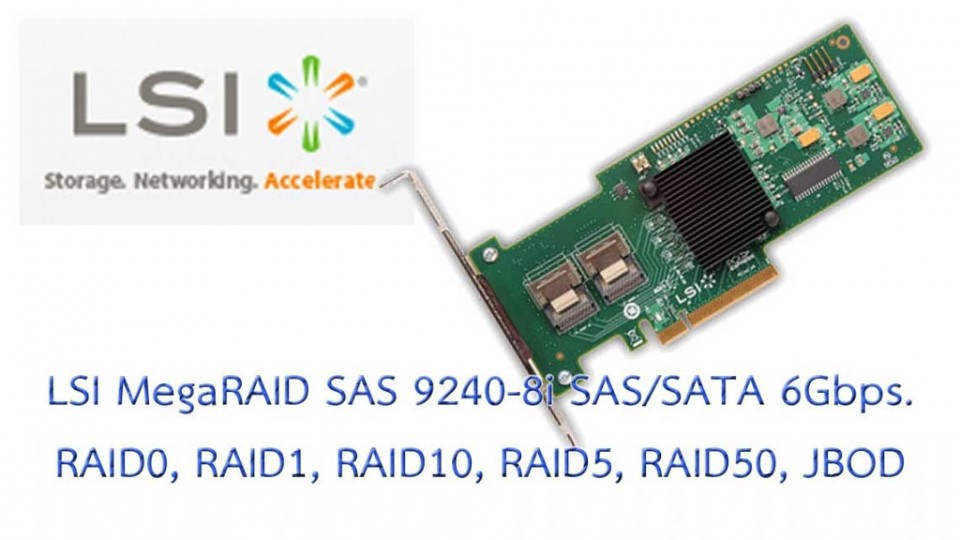

LSI MegaRAID SAS 9240-8i รองรับ SAS/SATA 6Gb

Support applications such as file, Web, and email servers in SMB environments with robust storage connectivity and RAID data protection. The MegaRAID® SAS 9240-4i 6Gb/s SAS and SATA RAID controller card allows even small businesses to take advantage of the performance and data protection benefits of hardware RAID.

  • Connect up to 64 SATA or SAS drives in non-RAID mode or 16 drives in RAID mode with four internal 6Gb/s SATA and SAS ports

  • Fit into 1U/2U rack-mounted servers and compact servers with low-profile form factor

  • Bandwidth to support mainline applications with PCIe® 2.0 connectivity

  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 10 and 50

  • I/O Controller:
    LSI SAS2008
    Controller Speed:
    PowerPC 440 @ 533MHz
    Cache Memory:
    NONE
    Connectors:
    Two mini-SAS internal connectors (SFF8087)
    Storage Connectivity ; Data Transfer Rates :
    8 ports : SATA III 6Gb/s, SAS 2.0 Compliant
    Data Transfer Rates:
    Up to 6Gb/s per port
    Host Bus :
    x8 lane, PCI Express 2.0 compliant
    Drive Configutation:
    Non-RAID: 64
    :
    RAID 0: 16 per volume
    :
    RAID 1: 2 per volume plus hotspare
    :
    RAID 5: 16 per volume
    :
    RAID 10: 16 per volume
    :
    RAID 50: 16 per volume
    Key RAID Data Protection Features:
    RAID 1
    :
    RAID 1E
    :
    RAID 10
    :
    RAID levels 0, 1, 5, 10, 50 and JBOD mode
    :
    Consistency Check
    :
    Fast initialization for quick array setup
    :
    Native Command Queuing
    :
    Staggered spin up for SATA drives
    :
    Hot plug support
    :
    Global hot spare support
    :
    Online Capacity Expansion (OCE)
    :
    Online RAID Level Migration (RLM)
    :
    Single controller Multipathing (failover)
    :
    Load balancing
    :
    SSD support with SSD Guard
    :
    Automatic rebuild of hot spare drives
    :
    Auto resume during array rebuild
    :
    Fault LED support through SGPIO
    :
    >2TB logical drive support
    :
    Soft bad block management
    :
    Error recovery support
    :
    DDF compliant Confguration on Disk
    :
    S.M.A.R.T. support
    :
    Patrol read for media scanning and repairing
    :
    Enclosure management - SES (inband) - SGPIO (sideband)
    PCI Card Type:
    3.3 V Add-in Card
    Operating Voltage:
    +12V ±10%
    PCI Power (Nominal):
    13.5W
    OS Support:
    Microsoft Windows
    :
    Linux (SuSE , Red Hat)
    :
    Solaris
    :
    VMware ESX/ESXi
    Warranty:
    1 Year (by BeCoolTech)
    I/O Controller
    Controller Speed
    Cache Memory
    Connectors
    Storage Connectivity ; Data Transfer Rates
    Data Transfer Rates
    Host Bus
    Drive Configutation
    Key RAID Data Protection Features
    PCI Card Type
    Operating Voltage
    PCI Power (Nominal)
    OS Support
    Warranty

    7,000 ฿
