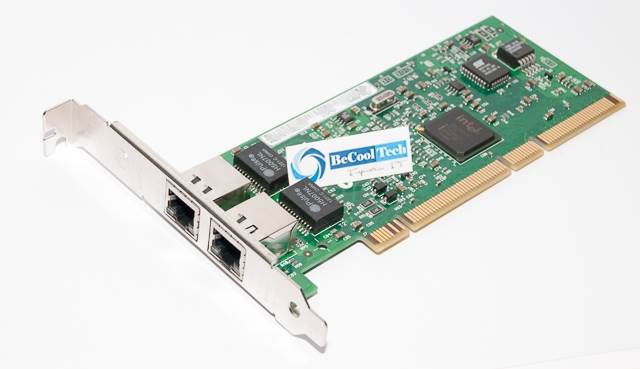

INTEL PRO/1000 MT Dual Port Server Adapter

INTEL PRO/1000 MT Dual Port Server Adapter

• Network Controller รหัส 82546

• 2 Port Gigabit (10/100/1000 Mbps.)

• ใช้ได้กับ Slot PCI และ PCI-X

• รองรับ Windows, LINUX

สามารถใช้ได้กับ Slot PCI และ PCI-X

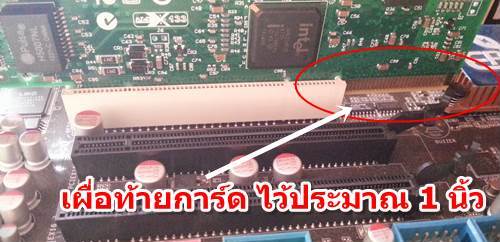

ในกรณีที่จะนำไปใช้งานกับ PCI Slot อาจจะต้องเพื่อระยะท้ายการ์ดไว้ประมาณ 1 นิ้ว

เพื่อป้องกันการนำไปเสียบแล้ว ใส่ไม่ได้ เนื่องจากอาจจะติดบางชิ้นส่วนที่อยู่บนบอร์ด

การใช้งาน INTEL PRO/1000 MT Dual Port Server Adapter

1. Linux Gateway – ClearOS, Mikrotik, ClarkConnect

2. Network Device – Router, Firewall, LOG Server

3. Service Server – Print Server, Web Server, Proxy Server

4. Server แยกเน็ต-แยกเกมส์ สำหรับร้านเกมส์ Diskless

หากท่านต้องการ SERVER LAN Card ประสิทธิภาพสูง

ต้อง Upgrade ไปใช้ LAN Card แบบ PCI Express

แนะนำ INTEL PRO/1000 PT หรือ Broadcom BCM5709, BCM5721

หรือ รุ่นใหม่อย่าง INTEL I340, INTEL I350

สอบถามข้อมูลสินค้า และการใช้งานเพิ่มเติมได้ที่

     088 – 9655 – 249

     Facebook.com/BeCoolTech

     LINE ID :: @becooltech

     sale@becooltech.com

!! ยินดีให้คำแนะนำก่อนซื้อ

Intel LAN Card สำหรับ Server พร้อม 2 Port Gigabit

เหมาะสำหรับ Server ทั้ง Windows และ Linux

Interface เชื่อมต่อแบบ PCI/PCI-X ใช้งานได้ทั้ง PCI และ PCI-X

Overview

Conserve valuable PCI slot space in servers, eliminate server bottlenecks and migrate existing Category-5 networks to Gigabit Ethernet easily and cost-effectively with the Intel® PRO/1000 MTDual Port Server Adapter. Featuring flexible, auto-negotiating 10/100/1000 Mbps performance, the Intel PRO/1000 MTDual Port Server Adapter is designed to automatically scale with growing networks. Enhance server performance further by teaming the two connections together or team with other Intel® PRO Server Adapters using Intel’s advanced server feature software to achieve multi-Gigabit scalability and redundant failover capability. Acompact form factor and swappable low-profile bracket allow this dual port Gigabit adapter to fit in even high-density, rack-mounted 1U and 2U servers. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.

Features and Benefits

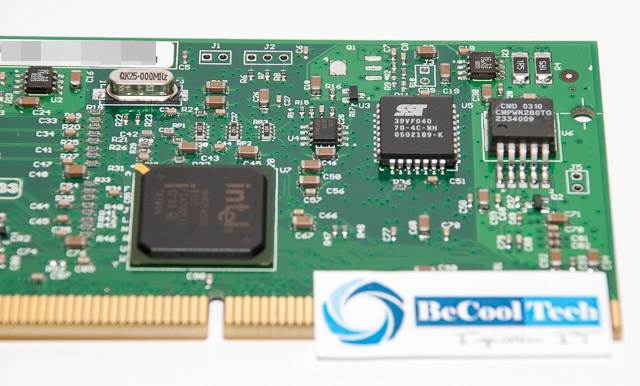

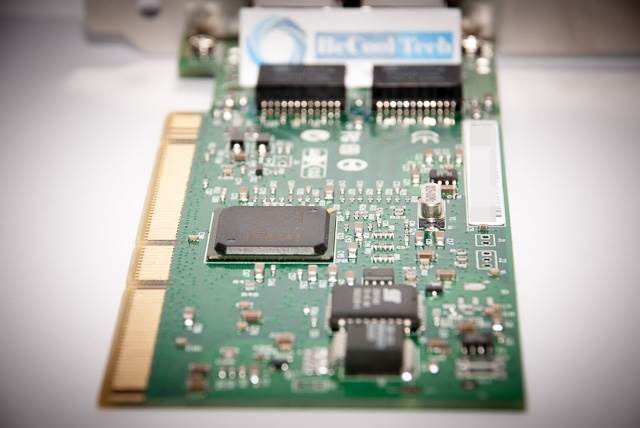

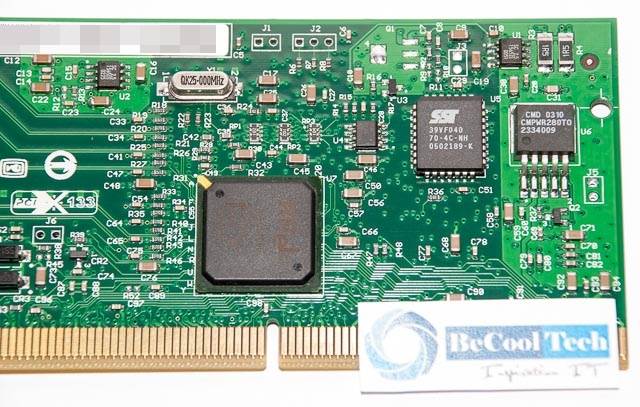

• Intel® 82546 Gigabit Controller – Enables two Gigabit connections in a single adapter, delivering increased bandwidth for slot-constrained servers and providing high performance, reliability, and low power use in a single,integrated, dual port Gigabit Ethernet controller chip

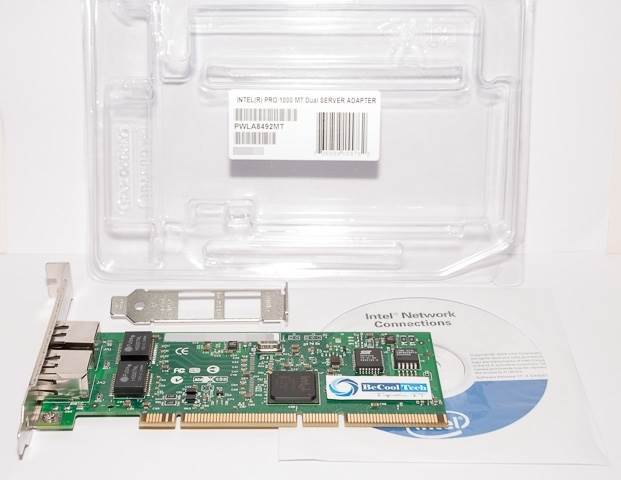

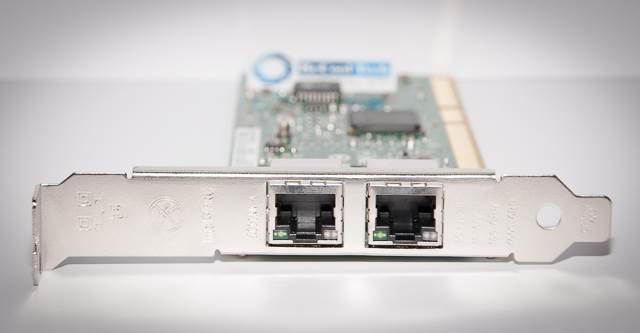

• Full-height and low-profile, screw-on brackets included with each adapter – Compatible with full-height and low-profile PCI slots—the  standard, full-height bracket can be easily swapped out and replaced by the shorter, low-profile bracket, for installation in high-density 1U and 2U servers that feature low-profile PCI slots
• Interrupt Moderation – Delivers increased performance while significantly reducing CPU utilization
  Advanced Cable Diagnostics – Dynamically tests and reports network problems (interrupts, error rate, cable length) and automatically compensates for cable issues (cross over cable, wrong pin-out/polarity)
• Large Send Off-load/TCP Segmentation Off-load – Compatible with Large Send Off-load feature of Microsoft Windows* Server 2003, 2000 and XP which enables wire speed performancewith low CPU utilization
• Expanded Advanced Server Features – Intel® ANS software increases uptime with redundant, teamed connections and scales bandwidth by balancing network traffic across multiple server connections. Now offers Switch Fault Tolerance and Test Switch Configuration to test compatibility and further increase uptime
• Intel® SingleDriver™ technology – Common driver suite for Gigabit Ethernet reduces installation  complexity
• Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters – Reduces support costs and simplifies installation and  maintenance

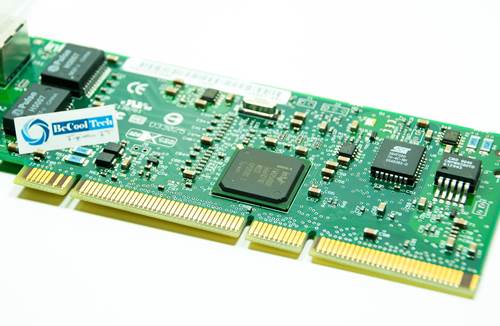

• Supports 64- or 32-bit PCI-X 1.0 or PCI 2.2 buses – This flexible, auto-sensing adapter works in a variety of bus types
  Remote Management Support (WfM, RIS, SNMP/DMI) – Reduces support costs with remote management based on  industry-wide standards
• IEEE 802.3ab Compatibility – Supports Gigabit Ethernet industry-wide networking standard
• Gigabit speeds on Category-5 cable networks – Able to achieve Gigabit speeds on commonly deployed CAT-5 cabling without costly cable replacement
  Compatible with Fast Ethernet – Reduces training costs and ramp rollout quickly
• Auto-sensing, self-configuring 10/100/1000 Mbps performance – Enables migration to faster networks easily and inexpensively—adapter will automatically sense when the network is able to support a faster speed, and self-configure to save IT staff time, money and server downtime

Download Datasheet

Intel Pro 1000 MT Dual Port (8492MT)

Download Driver

INTEL LAN Card PCI Driver

Order  AscDesc

Order By  TitlePublish Date

Linux Download

Intel PCI Drivers for Linux 215.14 KB 88 downloads

Intel Lan Card Driver สำหรับ Linux เฉพาะ INTEL PCI LAN Card ...

Windows 32 bit Download

Intel Drivers for Windows 32 bit 21.18 MB 417 downloads

Intel Lan Card Driver สำหรับ Windows ตระกูล 32 bit (ยกเว้น...

Windows 32 bit Download

Intel Drivers for Windows XP 2003 32 bit 19.38 MB 698 downloads

Intel Lan Card Driver สำหรับ Windows ตระกูล 32 bit (เฉพาะ...

Windows 64 bit Download

Intel Drivers for Windows XP 2003 64 bit 21.11 MB 408 downloads

Intel Lan Card Driver สำหรับ Windows ตระกูล 64 bit (เฉพาะ...

Windows 64 bit Download

Intel Drivers for Windows 64 bit 33.20 MB 1209 downloads

Intel Lan Card Driver สำหรับ Windows ตระกูล 64 bit (ยกเว้น...

BeCoolTech Download Center

หากพบปัญหาเรื่อง Driver แจ้งได้ที่ 088 – 9655 – 249 หรือ contact@becooltech.com

Intel Pro 1000 MT Dual Port Server Adapter on ARK.
