Intel Gigabit ET Dual Port E1G42ET Specifications

คุณสมบัติทางเทคนิค

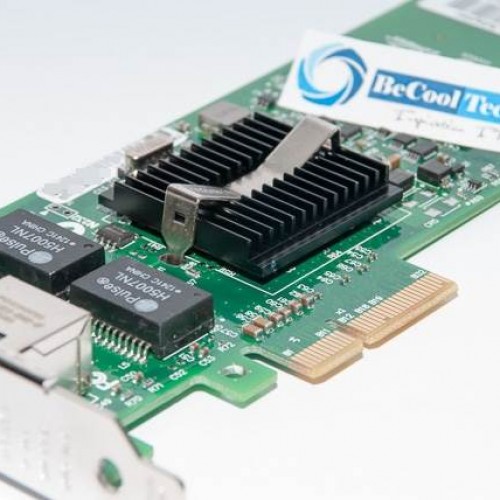

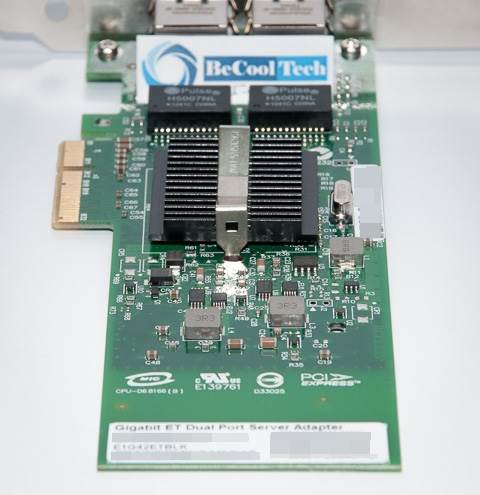

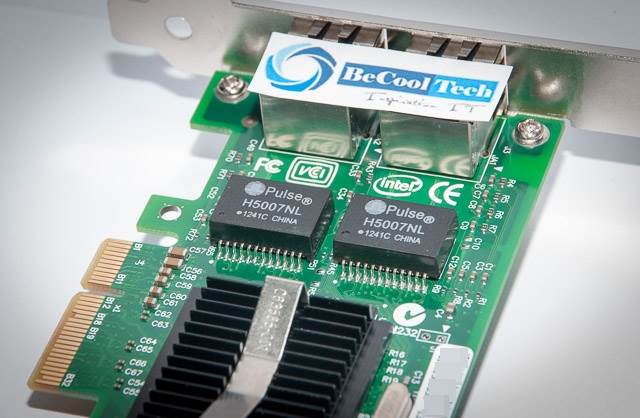

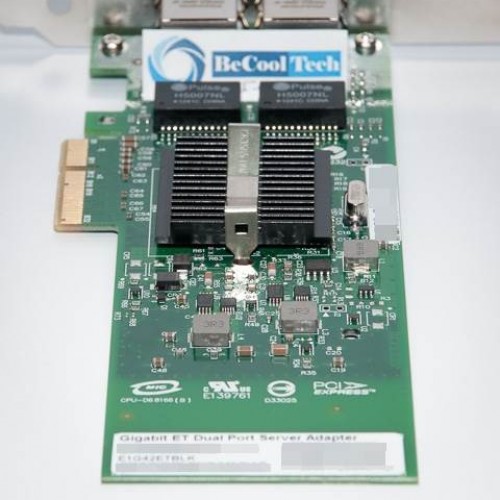

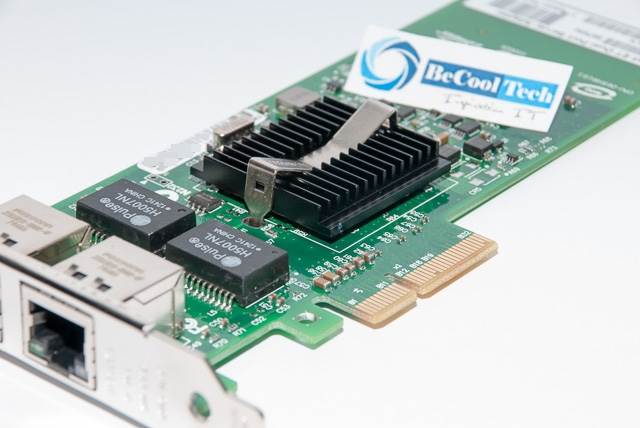

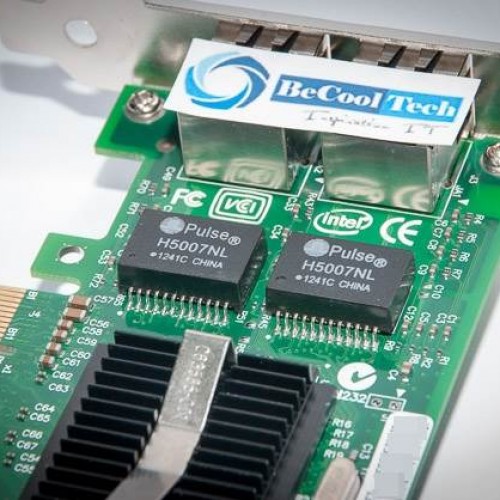

Intel Gigabit ET Dual Port Server Adapter E1G42ET

The Intel® Gigabit ET Dual Port Server Adapter and Intel® Gigabit EF Dual Port Server Adapter are Intel‘s third generation of PCIe* GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.

Product Code:
E1G42ETBLK
Network Controller:
Intel 82576
Connectors:

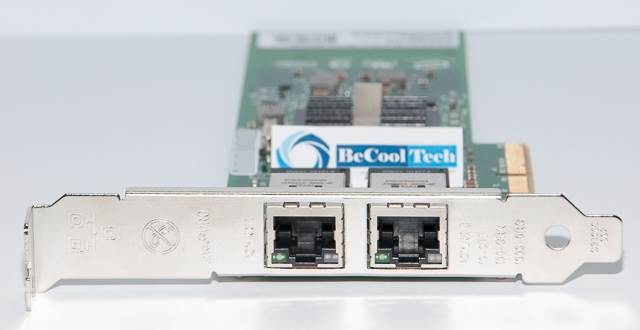

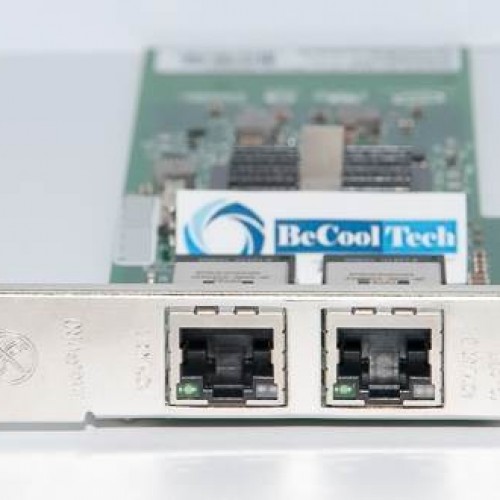

Two RJ-45 Copper
Data Rate:
10, 100, 1000 Mbps.
Bus Type:
PCI Express 1.0a
Bus Width:
2.5 GT/s Lane x 4 Lane
Bus Speed (MHz.):
10 Gbps uni-directional
:
20 Gbps bi-directional
Advance Features:
Multiple queues & receive-side scaling (DMA, DCA)
:
MSI-X support
:
Low Latency Interrupts
:
Multiple queues: 8 queues per port
:
Tx/Rx IP, SCTP, TCP and UDP Checksum offload (IPv4, IPv6)
:
Tx TCP segmentation offload (IPv4, IPv6)
:
IPsec Offload
:
LinkSec
:
Receive and Transmit Side Scaling for Windows
:
Scalable I/O for Linux
TEAMING Support ** :
Adapter Fault Tolerance
:
Switch Fault Tolerance
:
Adaptive Load Balancing
:
Fast EtherChannel
:
Gigabit EtherChannel
:
802.3ad (Ling Aggregation Control)
Virtualization Features:
Virtual Machine Device queues (VMDq)
:
Next-generation VMDq
:
IPv6 offloading
:
PC-SIG SR-IOV Implementation (8 virtual function per port)
:
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
Network Management:
On-board microcontroller BMC via SMBus
:
Advanced filtering capabilities
:
PXE Support
:
Wake-on-LAN Support
:
Watchdog timer
:
IEEE 1588 precision time control protocol
:
iSCSI boot
:
Simple Network Management Protocol (SNMP)
:
Remote Network Monitoring (RMON)
Operating System Support:
Windows XP, 2003, 7, 2008 and Latest
:
Linux® 2.2, 2.4 and Later
:
NetWare®
:
Solaris™ x86
:
UNIX®
:
VMWare ESX/ESXi
Warranty:
1 Year (by BeCoolTech)
Product Code
Network Controller
Connectors
Data Rate
Bus Type
Bus Width
Bus Speed (MHz.)
Advance Features
TEAMING Support **
Virtualization Features
Network Management
Operating System Support
Warranty

~~5,500 ฿~~ 5,000 ฿
